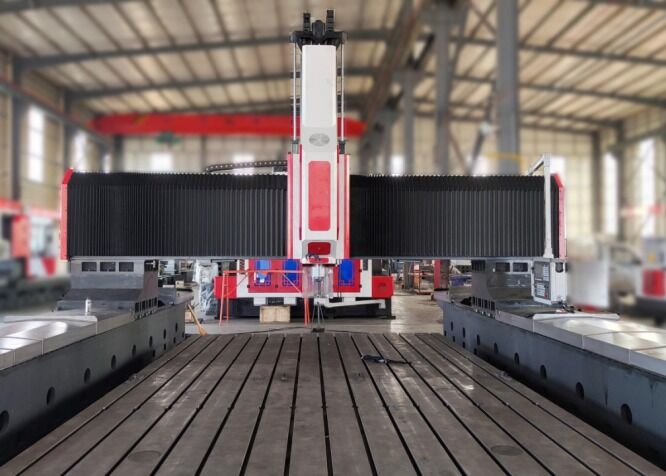

Applicable To Wind Power Generation Industry CNC Gantry Drilling Machine Model PHD4080

Applicable To Wind Power Generation Industry CNC Gantry Drilling Machine Model PHD4080

Product Introduction:

This machine is a gantry-type mobile CNC high-speed drilling and milling unit. It is primarily designed for drilling, tapping, and milling operations on workpieces such as steel plates, flanges, heat exchangers, tube sheets, and slewing supports. Carbide drills are utilized for high-speed drilling with internal cooling. The machine is equipped with either a KND or Siemens CNC system bus control, offering ease of operation and enabling automation, high precision, and suitability for small to medium-sized production runs with a variety of products.

Product configuration:

Product features

1. The machine primarily consists of a bed, worktable, moving gantry, vertical ram-type power head, hydraulic system, pneumatic system, cooling system, centralized lubrication system, electrical control system, and an automatic chip removal system.

2. In this series of machines, the worktable and gantry are separate components, with the gantry moving on two bases. This design significantly enhances processing stability and precision, offering a high load-bearing capacity.

3. The worktable is made of high-quality grey cast iron for superior durability and performance.

The machine bed and worktable are constructed from high-quality gray iron (HT300), with stress relief achieved through two tempering heat treatments. To eliminate resonance during the drilling process and extend the lifespan of the alloy drill, a separate design for the bed and worktable has been implemented.

1. The automatic chip removal and circulating cooling system minimize non-productive time and reduce labor intensity. The operator is only required to load and unload workpieces and replace the drills.

2. The machine is equipped with a Taiwan BT50 spindle, featuring internal cooling and high precision. It is compatible with carbide drills. Additionally, the machine incorporates a pneumatic tool cylinder for easier tool changes. The high-power main spindle motor is driven by a servo-controlled synchronized belt, allowing it to handle a wide range of rotational speeds.

3. This CNC drilling machine is specifically designed based on the characteristics of the workpiece and precision requirements. It features a compact and flexible structure, ensuring optimal processing performance. Whether the holes are arranged in a circular or linear pattern, the machine completes the task quickly and accurately. As a result, it offers a highly cost-effective solution.

The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for the accurate processing of plate-like components and structural elements. This machine is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, provided that the material thickness falls within the machine's specified effective machining range.

In steel structure manufacturing plants, this plate drilling machine delivers precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the reliable assembly of steel frameworks. Within the wind energy sector, it offers high-precision machining for wind turbine towers and flanges—vital processes that ensure these components can withstand demanding environmental conditions, such as extreme winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and supports, guaranteeing the formation of stable and durable connections capable of enduring dynamic loads throughout the bridge's long-term service life.
