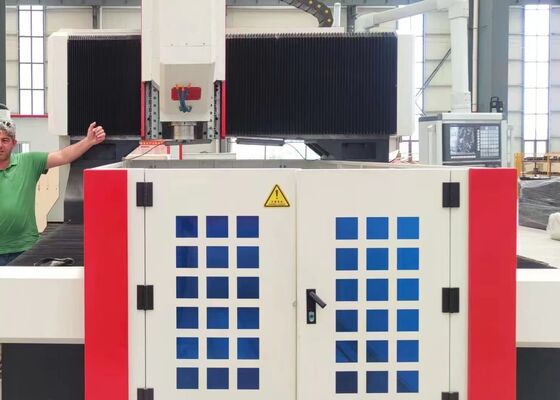

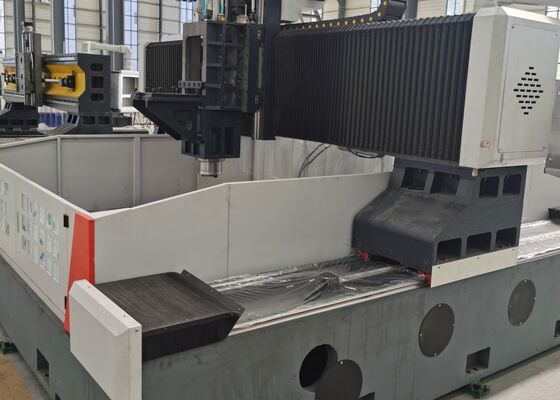

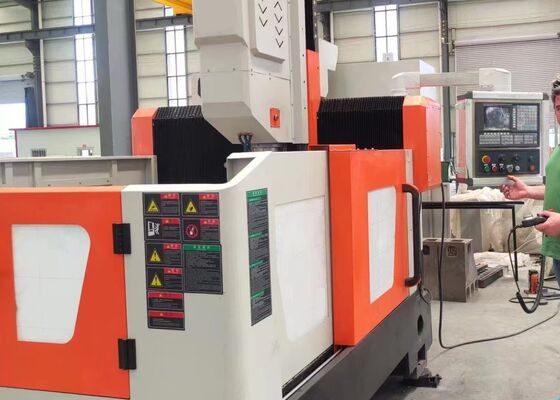

Multi Functional Metalworking Machine CNC Deep Steel Plate Drilling Machine For Flange Tube Plate
Product Introduction
The CNC gantry-type drilling and milling machine is meticulously designed for high-precision drilling, chamfering, tapping, and milling operations on plate workpieces and structural components. It is capable of processing a wide range of items, including flanges, discs, rings, and flat plates, within the machine's specified effective processing range. The machine accommodates both through-hole and blind-hole machining on components made from single or composite materials. With fully integrated digital control throughout the entire machining process, it ensures smooth operation and exceptional efficiency. This machine is ideally suited for automated production, providing high-precision results to meet the demands of large-scale, multi-variety manufacturing environments.
Specifications:
| Workpiece size |
LxW |
1200x1200 mm |
| Gantry height |
750 mm |
| Workbench |
T-slot width |
18mm |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT50 |
|
Max.drilling diameter
(Ordinary carbon steel)
|
Φ60 mm |
| Tapping diameter |
M3-M28 |
| Spindle speed |
30~3000 r/min |
| Servo spindle motor power |
22kW |
| Distance from the lower end of the spindle to the worktable |
200-750mm |
|
Lateral movement of power head (X axis)
|
Max.horizontal stroke |
1200 mm |
| Lateral movement speed |
0~8 r/min |
| Servo motor power for lateral movement |
2.4kW |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke |
1200 mm |
| Feed moving speed |
0~8 m/min |
| Feed servo motor power |
2.4kW |
| Vertical ram feed motion (Z axis) |
Max. stroke |
550 mm |
| Moving speed |
0~8 m/min |
| Servo motor power |
2.8kW (Brake) |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C |
±0.015/1000mm |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C |
±0.01/1000mm |
| Overall size |
LxWxH |
4000x3800x2800 mm |
Product Features
1. Transmission System
The high-precision guide rails and sliders, imported from Taiwan, are meticulously engineered to ensure smooth operation while significantly enhancing the equipment's capacity to bear heavy loads. The X-axis and Z-axis are each fitted with two and four rolling linear guides, respectively, which act as the primary guiding and load-bearing elements for both lateral and longitudinal movements. This configuration fully satisfies the technical requirements for high-speed drilling operations. For power transmission, both the X-axis and Z-axis are driven by AC servo motors, which drive precision ball screws to convert rotational motion into highly accurate linear displacement.
The Y-axis features two heavy-duty rolling linear guides, each equipped with two square rail sliders, collectively forming the Y-axis sliding mechanism. This design not only meets the high rigidity and strength requirements of the gantry frame but also provides several technical benefits, including a low friction coefficient, high-speed movement, superior vibration damping, and an extended service life. For power transmission, the Y-axis utilizes synchronous drive technology with servo motors, which drive the ball screws in unison, ensuring precise reciprocating motion of the Y-axis workbench for accurate CNC machining performance.
2. Automatic Lubrication System and Protective Mechanisms
The machine is equipped with a Taiwan-made volumetric partial-pressure automatic lubrication system, delivering full-angle lubrication to moving components such as guide rails, lead screws, and racks, thereby substantially prolonging the machine's service life. The X-axis and Y-axis are shielded by dustproof covers, while waterproof splash guards are positioned around the workbench, providing enhanced protection during operation.
3. Central Coolant Delivery System
This machine is equipped with a standard central coolant delivery system. The internal coolant circulation effectively prevents the buildup of metal chips on the tool during machining, minimizing tool wear, extending tool lifespan, and improving the surface finish of the workpieces. The high-pressure coolant outlet at the tool tip offers reliable protection for both the workpiece surface and the high-speed rotary joint, preventing blockages caused by contaminants and enhancing overall workpiece quality and operational efficiency.
This advanced CNC gantry-type industrial machine, specifically engineered for plate and sheet metal drilling and marking operations, is carefully designed for high-precision machining of plate-like components and structural elements. Optimized for processing workpieces such as flanges, discs, rings, and flat plates, it ensures that the thickness of these workpieces strictly complies with the machine's predefined effective machining specifications.
In steel structure manufacturing plants, this equipment carries out highly precise drilling and milling operations on structural plates and connecting components, providing a reliable foundation for the stable assembly of steel frameworks. Within the wind energy sector, it offers precision machining solutions for wind turbine towers and flanges—critical operations that ensure these components can withstand harsh environmental conditions, such as high winds and temperature fluctuations. In bridge construction, the equipment processes bridge girders and support brackets, enabling the creation of robust, durable connections designed to endure dynamic loads throughout the bridge’s extended operational lifespan.
