Product Usage:

The production line is engineered for the marking and drilling of components utilized in power transmission towers, telecommunications infrastructure, and steel frameworks.

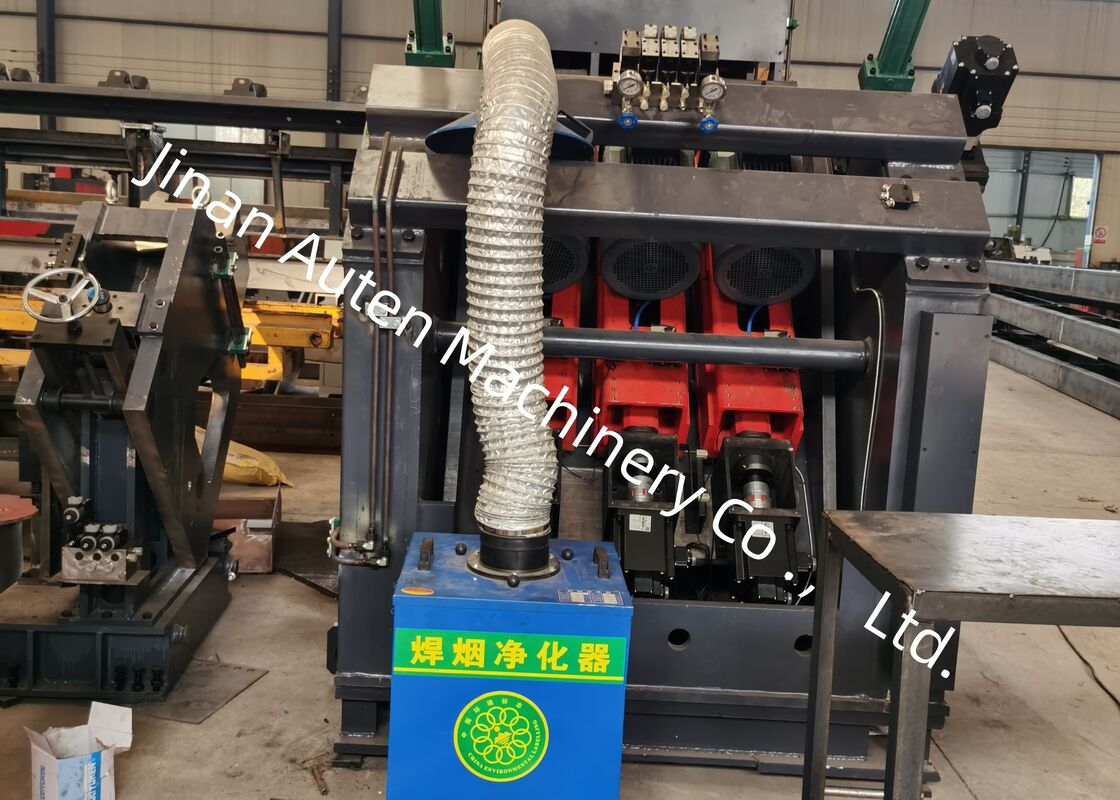

Product structure characteristics:

The machine consists principally of a lateral feeding platform, an overturn feeding mechanism, a feed channel, a CNC trolley marking system, a typing unit, a drilling unit, a pressing unit, a finished material conveyor, a hydraulic system, a pneumatic system, a control system, and other related components.

Main Parameters:

Product Features:

1. This processing line is comprised of a transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two drilling units, a marking unit, an automatic unloading conveyor, along with the associated hydraulic station and electric cooling system. It integrates CNC technology and servo motors for material feeding, ensuring superior efficiency and consistent workpiece accuracy.

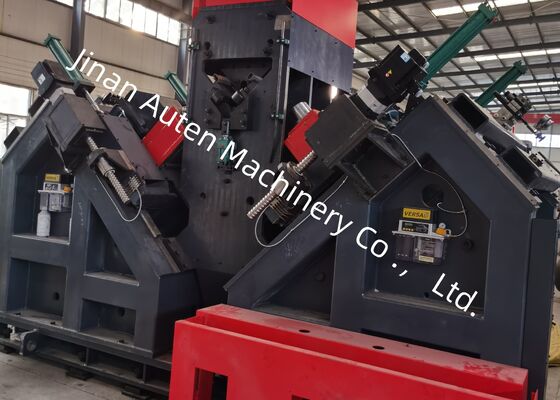

2. A drilling unit is positioned on each side, with each unit designed to accommodate three drills of varying sizes. The drilling units are equipped with CNC-controlled motion for depth adjustment, guaranteeing precise hole placement.

3. The rotational speed of all spindles is continuously adjustable via a transducer, while the feeding speeds are infinitely variable through speed control valves. The transition between rapid feeding, operational feeding, and rapid retraction of the spindles is fully automated.

4. The drilling line is equipped with a single marking unit, enabling simple presetting of marking positions. Marking, workpiece clamping, and the infeed process for drilling are all powered by the hydraulic system. Key components are sourced from renowned international suppliers. A recirculating cooling system is integrated to enhance the lifespan of the drills.

5. Both the marking and drilling processes are fully automated. Finished components are ejected via a pneumatic turnover system, reducing physical strain on operators and offering significant advantages over competing manufacturers.

6. The control system comprises the main computer, servo motors, PLC, external monitoring switches, and other associated components. By inputting the workpiece dimensions, the processing program is generated automatically. Additionally, the program can be saved, retrieved, displayed, and transmitted based on the workpiece number.

7. The machining line is fitted with a support and pressing mechanism to accommodate the processing requirements for angles with greater degrees of bending.

These samples encompass a wide range of standard specifications and hole patterns for angle steel utilized in the construction of transmission line towers. They allow potential users or inspectors to visually assess the operational performance of the equipment, offering clear and concrete references to determine whether the equipment meets the necessary manufacturing standards for producing transmission line towers.

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers must endure extreme weather conditions and substantial loads, this equipment plays a vital role in processing the angle steel components that form the towers' primary load-bearing structures. It conducts drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring precise dimensions and dependable connection performance. This, in turn, ensures the long-term structural stability of the transmission towers throughout their entire service life.
