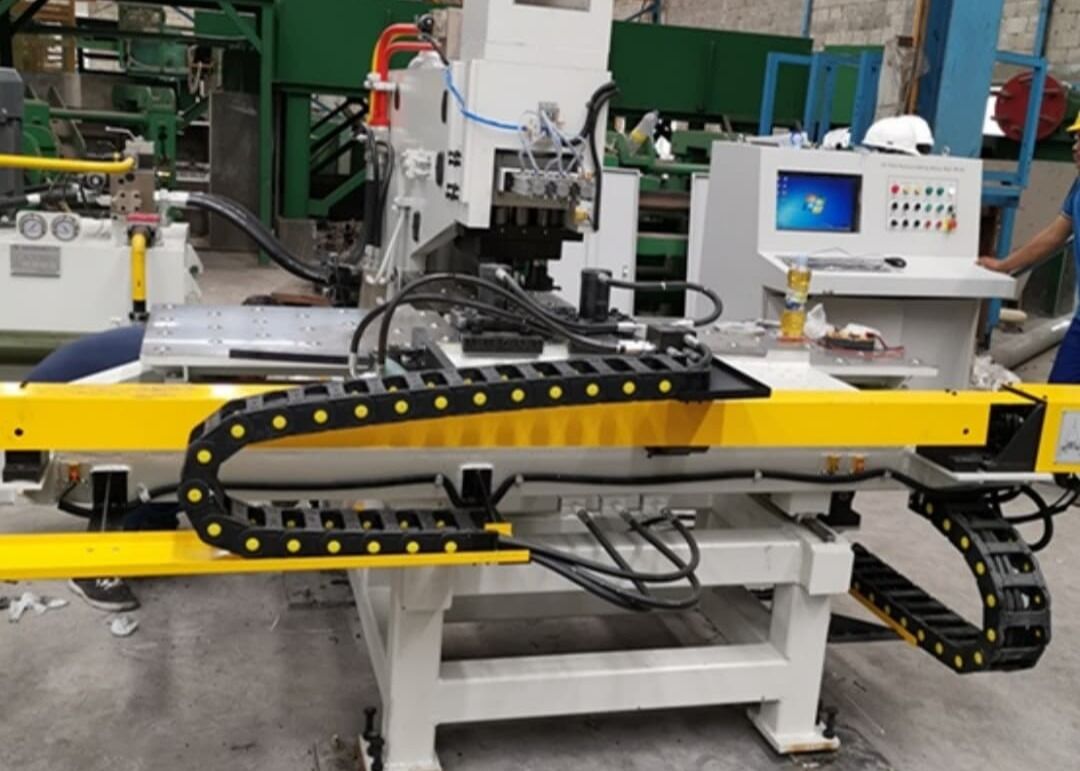

1. The CNC channel steel punching and marking machine features a robust C-type welded frame, ensuring exceptional structural integrity and providing ample operational space. It is equipped with three die stations, one of which is exclusively dedicated to marking, and supports automatic indexing between stations to enhance workflow efficiency. The clamping system is highly versatile, accommodating a wide range of workpieces, with a zero-reference baffle to ensure precise alignment. Workpieces are securely placed on a ball-bearing worktable, facilitating smooth and effortless handling. Movement along the X and Y axes is driven by servo motors, with high-precision ball screws ensuring accurate transmission, while punching position accuracy is controlled by a Programmable Logic Controller (PLC), enabling full automation of the machining process. The system also supports the storage, retrieval, and reuse of workpiece programs, ensuring seamless batch production cycles.
2. The CNC steel drilling machine incorporates state-of-the-art Computer Numerical Control (CNC) technology, paired with servo motor-driven feed systems, ensuring outstanding operational efficiency and consistent precision across a wide variety of workpieces.
3. The machine's key functional components are designed with a modular structure, improving ease of maintenance and optimizing repair processes.
4. The CNC metal plate punching and marking machine integrates punching, marking, and drilling functions into a single cohesive process, offering versatile capabilities within a unified operational cycle.
5. The drilling module is equipped with key features including rapid downward feed, accurate machining progression, and fast retraction, greatly enhancing operational efficiency in practical work environments.
6. With an advanced self-diagnostic fault detection system, the machine swiftly identifies any operational issues, enabling timely maintenance and ensuring continuous production reliability.
7. The programming process is designed with user-friendliness in mind: operators can directly input hole diameters, positional coordinates, and batch quantities into the control system. Furthermore, the system is fully compatible with programs created by specialized lofting software and supports seamless conversion of CAD/CAM files, ensuring smooth and efficient program execution.
This specialized metalworking system is carefully engineered to perform punching, marking, and drilling operations on steel plates within the steel tower manufacturing industry. It offers exceptional machining precision, meeting rigorous tolerance and surface finish standards. Beyond its primary function in the steel tower sector, this versatile equipment consistently executes punching, drilling, and marking tasks on metal plates for a wide range of industrial applications. It ensures superior operational efficiency and precise processing for various metal workpieces, thereby streamlining workflows and enhancing product quality across multiple industrial sectors.
