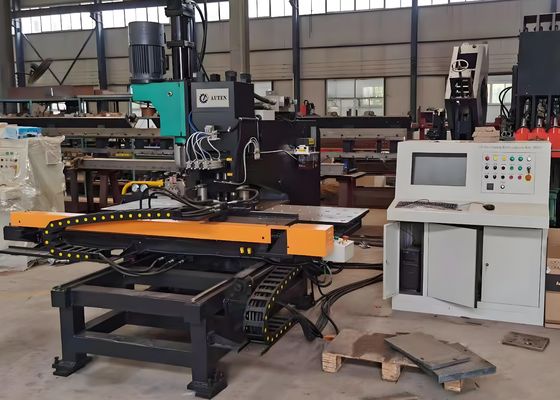

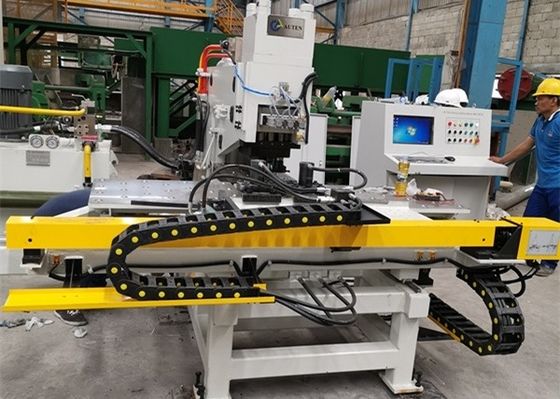

5～25mm Q235 Plate Punching Thickness CNC Plate Drilling Machine 3.2×3×2.6m Overall Dimension

1. The frame of the CNC channel steel punching and marking machine is fabricated through C-type plate welding, boasting exceptional rigidity and a generous operating space. This machine incorporates three die stations (one of which functions as a marking die station) that facilitate automatic die station switching. The clamping system is adaptable to a variety of workpieces, utilizing a zero baffle as the reference marker, while the workpiece is supported by a ball-rolling worktable. The movements of the X and Y axes are controlled by servo motors and driven by ball screws, with a PLC (Programmable Logic Controller) governing the punching position—thereby achieving full automation of the entire machining process. Once the workpiece program is input by the operator, it can be reused repeatedly.

2. The CNC steel drilling machine employs CNC (Computer Numerical Control) technology and servo motor feeding, delivering high operational efficiency and consistent workpiece precision.
3. Key functional components are assembled in a modular configuration, which facilitates convenient maintenance and repair.
4. The CNC metal plate punching and marking machine enables the integration of punching, marking, and drilling operations on a single metal plate.

5. The drilling machine unit incorporates functions including rapid lowering, slow working feeding, and quick retracting—all of which effectively enhance operational efficiency.

6. It is integrated with a fault self-diagnosis function, which facilitates the timely detection of operational anomalies.

7. The programming process features a user-friendly design: users may input hole diameters, hole positions, and workpiece quantities into the computer. Additionally, it supports the employment of programs generated by lofting software, or enables direct CAD/CAM conversion for program execution.
