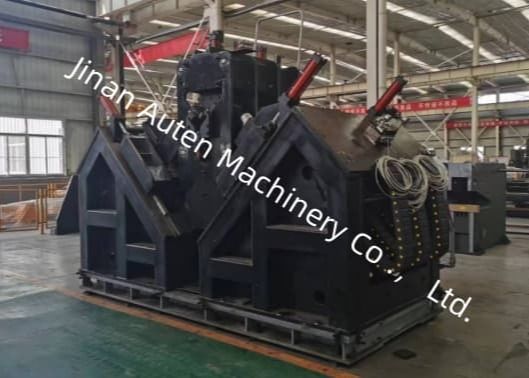

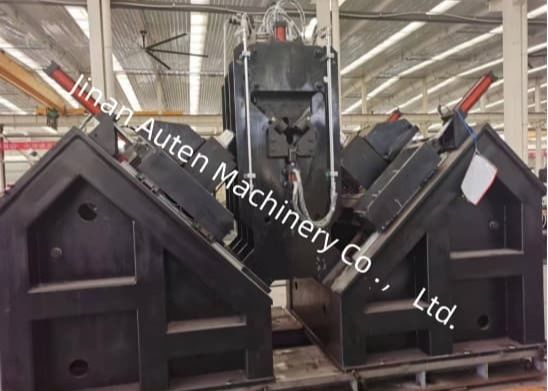

3 Drill On Each Side CNC Angle Drilling And Marking Line Machine 18 Characters
Product Usage:
It is primarily utilized for drilling and stamping large-size, high-strength angle steel in transmission line towers. All holes on angle steel can be drilled on this production line, featuring high hole quality and positional accuracy, along with high production efficiency and automation levels.
Main parameters:
| Model |
ADM2532 |
| Angle size(mm) |
140*140*10~250*250*32 |
| Max. length of raw material (m) |
14 |
| Marking force(kN) |
1000 |
| No. of character group |
1 |
| No. of character |
18 |
| Character size (mm) |
14*10*19 |
| Range of accurate distance(mm) |
50~220(Stepless) |
| No. of drill on each side |
3(2 groups, 6 in total) |
| No. of blade on each side |
3 |
|
Taper of drilling spindle
|
BT40 |
| Max. drilling diameter (mm) |
Φ40 |
| Max. Spindle rotation speed(r/min) |
6000 |
| Drill cooling unit |
MQL 360-2(Dry cooling) |
| Cooling unit oil storage capacity |
2L |
| Cutting oil |
Vegetable oil-based micro cutting oils(2000-25) |
| fuel consumption |
5~50ml/h |
| CNC trolley drive type |
AC servo motor,rack and pinion driving |
| Max. feeding speed of angle(m/min) |
40 |
| AB-axis alignment movement drive method |
Linear Motion Guide;AC servo motor;Ball screw Secondary driving |
| Max. skateboard travel speed of drilling head(m/min) |
10 |
| Drilling head drive type |
Linear Motion Guide;AC servo motor;Ball screw Secondary driving |
| Max. feeding speed of drilling head(m/min) |
14 |
| Feeder trolley arm working method |
Vertical lifting type |
| Number of tipping cylinders on discharge side |
4 |
| Hydraulic station cooling method |
Air cooling |
| No. of CNC axes |
9 |
| Air pressure(MPa) |
1 |
| Total power |
About 150KW |
Product Features:
1. High Level of Automation
The production line is equipped with an automatic loading device (comprising a transverse feeding channel and a rotating loading frame), an automatic discharging device, and an automatic feeding device. All holes and steel mark markings on the angle steel can be processed in a single pass through the production line, with no manual intervention required during processing. This significantly reduces workers' labor intensity.
2. The typing unit features a closed structure with high strength and stable performance. The printing unit is equipped with a bed support fixed on the machine base, a movable bed, and a hydraulic-driven press head character box. It performs printing at the positions specified in the drawings in accordance with computer instructions. To expand the machine's processing range, a manual adjustment mechanism has been added, which allows for changing the downward position of the movable body (i.e., the position of the character head) to adapt to the typing positions of angle steel with different specifications.
3. The drilling spindle is equipped with a butterfly spring automatic tool clamping mechanism and a hydraulic cylinder for tool release, enabling convenient replacement of the tool shank. The front section of the spindle adopts a labyrinth protection structure, incorporates a waterproof design, and is fitted with an air curtain device, ensuring that cutting fluid does not penetrate into the interior of the spindle.
These specimens cover a variety of common specifications and hole patterns of angle steel used in transmission line towers. They allow potential users or inspectors to visually verify the equipment’s performance, thus providing a concrete and intuitive reference for assessing its suitability for practical production needs.
It is primarily engineered for drilling and stamping large-size, high-strength angle steel employed in transmission line towers, and is widely applied in diverse scenarios within the construction and maintenance of power transmission infrastructure.
In the construction of ultra-high voltage (UHV) transmission lines, where towers are required to withstand extreme weather conditions and heavy loads, this equipment assumes a critical role in processing the angle steel components that constitute the main framework of the towers. It efficiently undertakes the drilling and stamping tasks for the angle steel utilized in tower bodies, cross-arms, and other key structural parts, ensuring precise dimensions and robust connections to secure the overall stability of the towers.
